TiSoft ElectricalDesign helps you design any building’s electrical installation, make all the necessary calculations ensuring code compliance, and produce a variety of drawings, floorplans, schematics and reports.

It will also provide a wealth of information that will assist you in making design decisions early on, avoid oversizing materials and equipment and visualize the installation prior to construction.

For the acceleration of distribution modeling, default values ​​have been given by the program to all the new elements that the user can then change. The electrical distribution is depicted in the form of a hierarchical tree and the electrical panels are placed as nodes of the tree. You can easily add distribution boards to the delivery tables. In each table add its loads and for each load enter its power in kW, length and type of cable.

The program automatically calculates the cable cross-section, voltage drop, and dimension the materials (fuses, switches, etc.) of the departure. At the same time it calculates the absorbed power of the electrical panel, the supply cord and the materials of arrival.

ElectricalDesign implements and meets the standards of HD 384, IEC 60364 and the British BS 7671.

Calculations

Τεύχος υπολογισμού

Τεύχος υπολογισμού σε αρχείο PDF

Analytical calculation of cables

Each low voltage cable is calculated based on the cable tables and the correction factors in ELOT HD384. For medium voltage cables use VDE 0298.

Short-circuit level

For each point on the network, the program calculates in detail and shows you the short-circuit level in kA.

Power Transmission Dimension, H / Z, UPS

Every load in the project is charged in some categories (lighting, air conditioning, lifts, etc.). The program sums the loads of each class and thus establishes the installed power. By setting the coincidence factor for each class, the absorbed power is obtained. This power is used to select the power TPS, the capacitor array, the H / Z and UPS from the corresponding libraries that accompany the program.

Calculations – Costs

For each electrical panel or whole project, you have detailed and concise measurements of cables and panel materials. You can also have a detailed cost estimate for the materials of most companies. For the entire project, you have a concise counting with the Numbers for the production of auction items.

Voltage drop test

The program checks for each load the total voltage drop from the beginning of the electrical installation to the terminals of the device as required by the ELOT HD384 standard.

Selectivity test

For each line the program checks the selectivity of the protective devices. This is done by plotting the characteristic features of the protection devices in logarithmic paper.

Drawings & Prints

Single line diagram

They are automatically generated in the embedded CAD environment of the program on pages A3 or A4. The single-line diagrams show all the necessary elements required for the construction of the electrical panels and the creation of the electrical installation, ie cross-sections and cable lengths, load names. If the lines of the electrical panel do not fit on a page, new pages are automatically added.

Other electrical drawings

In addition to single-line diagrams, the program also automatically produces:

  • Symbol Memo
  • Cubicle
  • the substation’s single line
  • voltage drop charts
  • the short-circuit level
  • the selectivity study

Building depiction

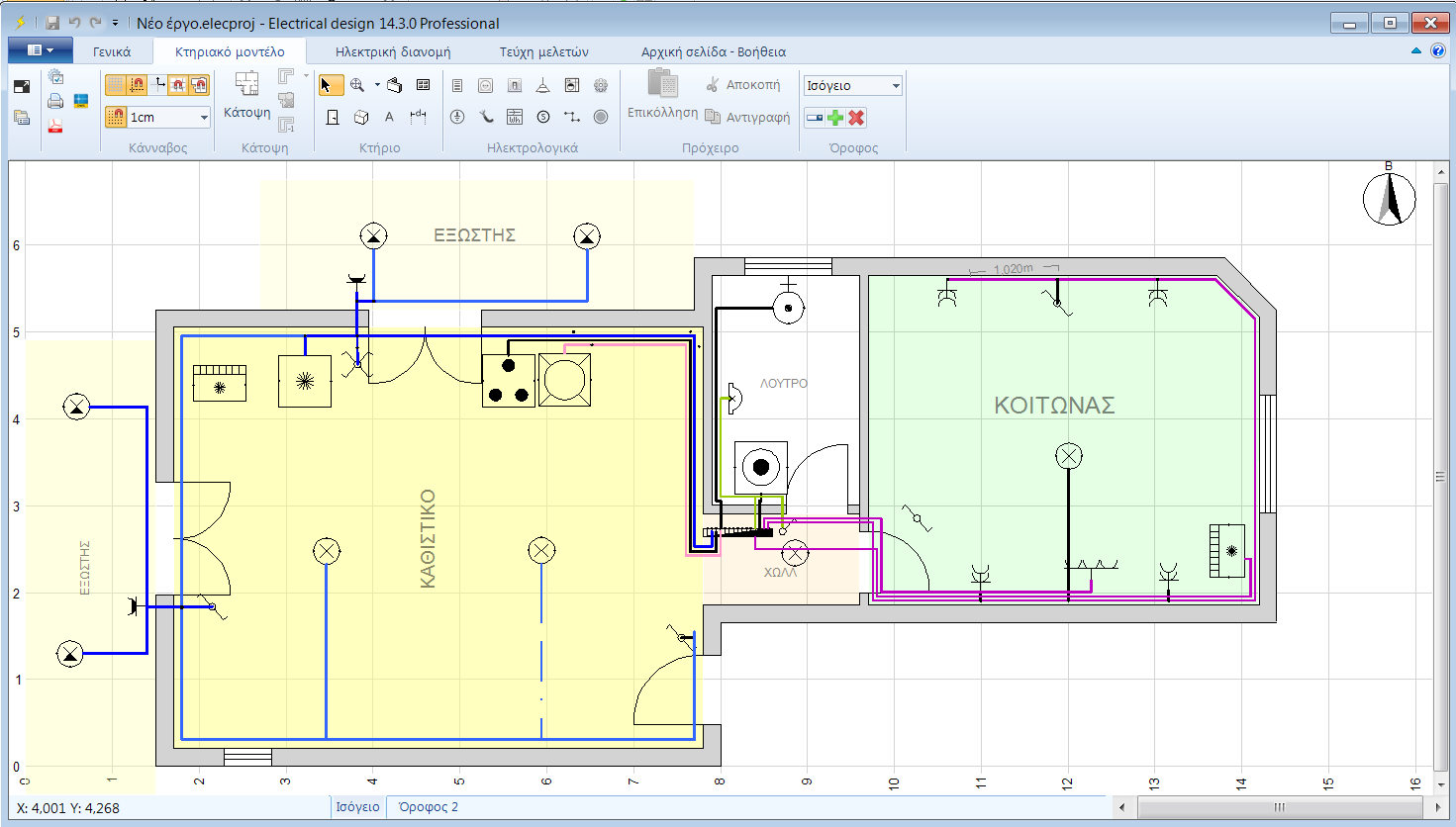

The cabling model can add electrical equipment and cable routes quickly and easily by using the BIM method. From there, we can extract floor plans of the electrical installation.

All drawings are DWG files that you print directly or edit them with any plotter.

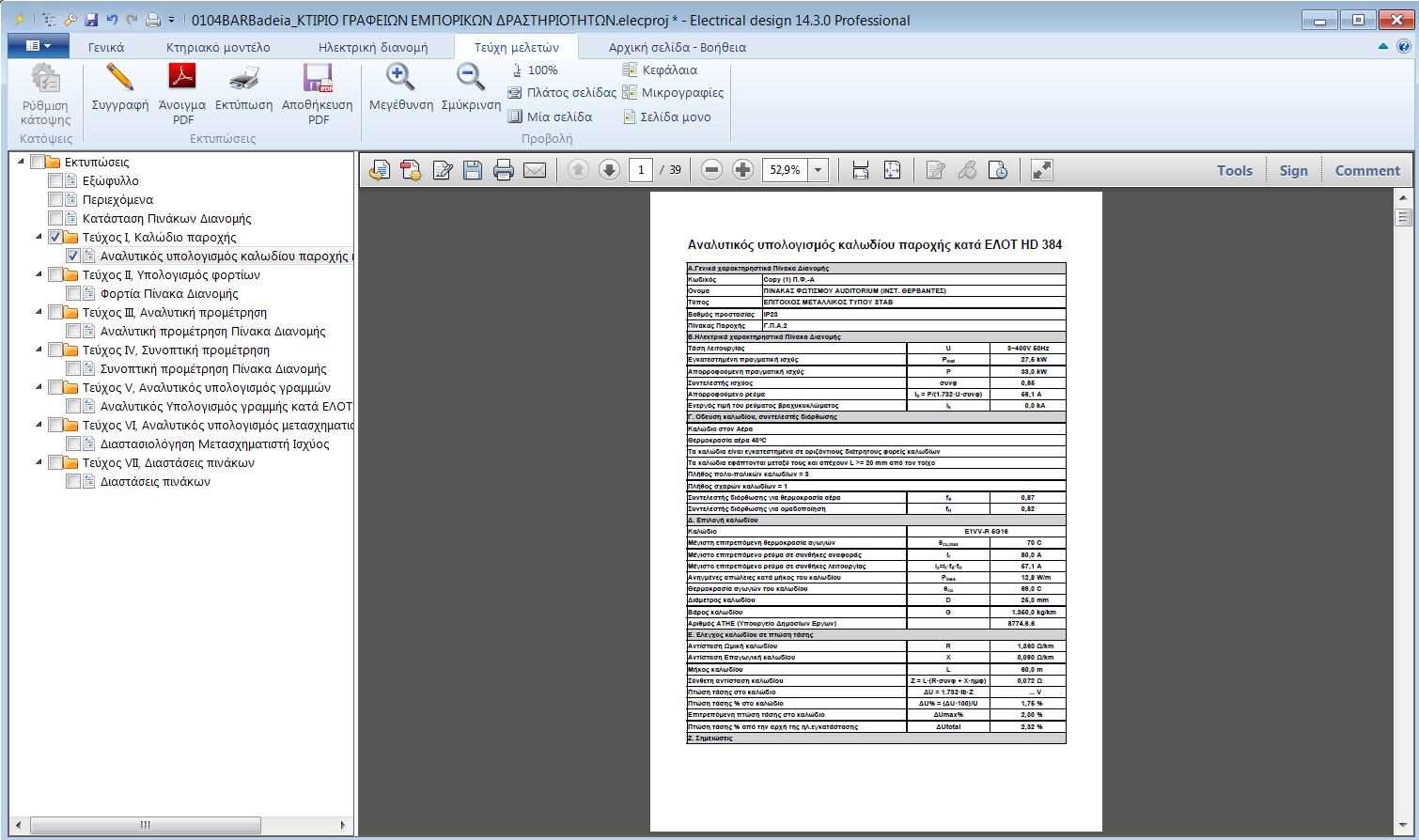

The program produces a wide variety of prints organized in six (6) issues. You can preview them, print them or export them to dozens of Format. The pages of each issue are numbered with the A / D corresponding to the page with the contents of the issue. With one click, the drafts are saved to PDF, DOC etc ..

reports

Sample Prints ElectricalDesign

Τεύχος υπολογισμού σε αρχείο WORD

Το πρόγραμμα περιλαμβάνει ενσωματωμένο 2D-3D μοντελοποιητή του κτηρίου.

Libraries

Knowledge Library

The knowledge library contains the necessary theory that the electrician scholar must know to be organized so that it is immediately usable.

Material Libraries

The program is accompanied by rich libraries such as:

  • Electrical Symbols
  • Low and Medium Voltage Electrical Materials
  • Departures, Arrivals, MT Cells
  • Cable
  • Descriptions
  • Leaflets
  • Power Transformers
  • Motors
