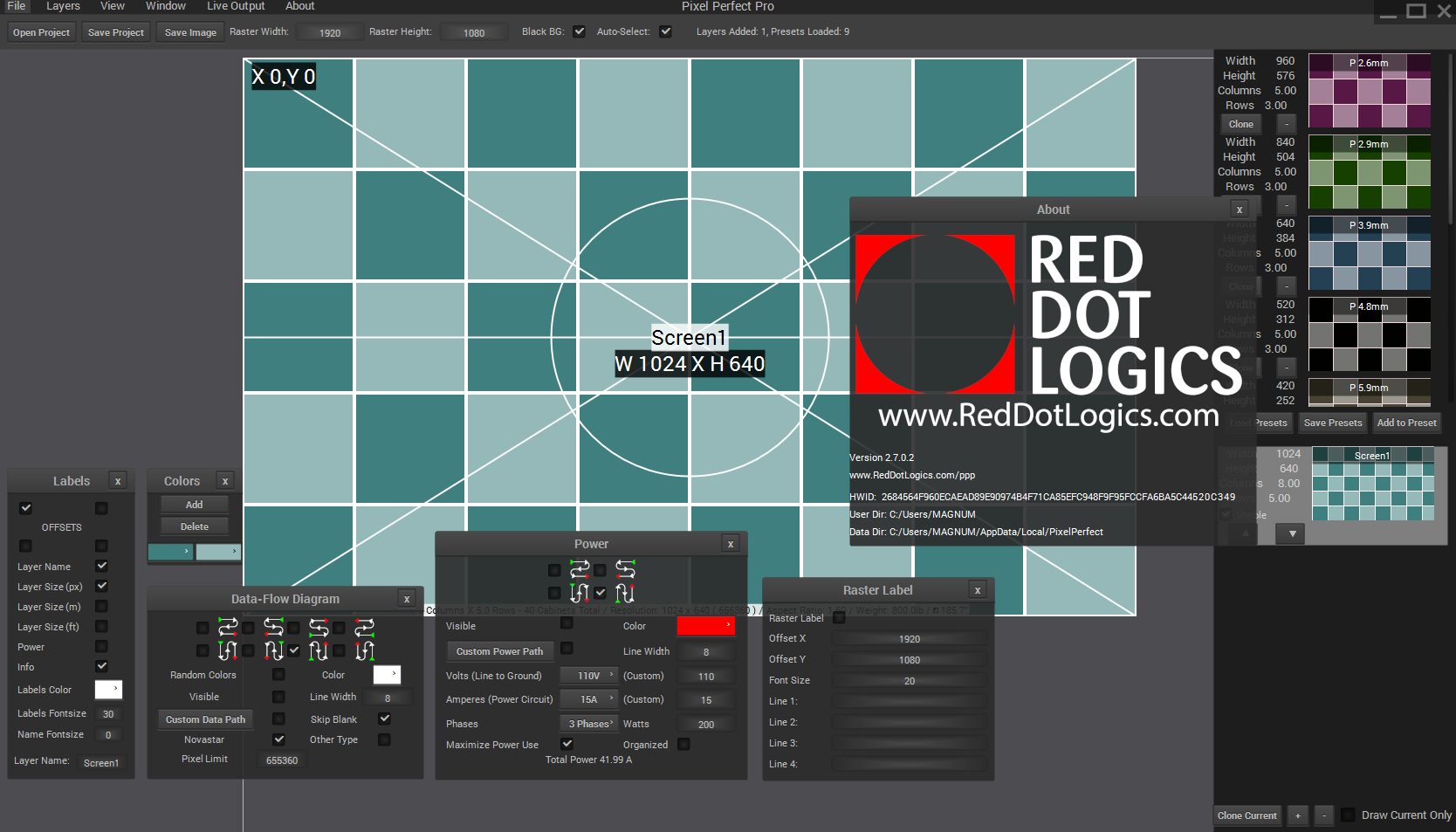

Pixel Perfect Pro V2.7.0.2
Bug Fixes
Custom Amps input was not working, it has been fixed
Custom Power diagram numbering was wonky, and it has been
fixed and tested extensively
Pixel Perfect Pro V2.7.0.1
Bug Fixes
Not saving the custom Power diagram, and after opening the
project file with the custom power diagram, it was not visible.
Pixel Perfect Pro V2.7.0.0
New features
Screen Weight Display-it shows the weight of the screens only, excluding hardware,
cables, headers, and other accessories.
Added a Layer rotation to rotate any Screen layer to match your physical
design if needed. -Simply enter the Rotation degree in the field to be able to rotate the
Screen layer in + or – direction, and use the Shift key to move it or enter
the XY coordinate of the start position.
Added Screen Diagonal size in inches, Feet & meters -This will display a diagonal screen in the center of the screen as well
as on the INFO line at the bottom of each screen.
Upgraded color picker with RGB, HSV & HEX codes. -You can now use the color picker to select the desired color-You can enter RGB Color codes-You can enter HSV Color Codes -Use Hex Codes
All-New Power Tools Palette with Enhanced Features
•
You can now choose from four predefined power diagrams,
used alongside data diagrams simultaneously.
•
Create a custom Power Path to build wiring diagrams beyond
the four preset patterns.
•
Assign a distinct color for the power path, separate from the
data path, to easily differentiate between power and data diagrams.
•
For the power diagram, select from a variety of line-to-line
voltage options including 110V, 208V, 220V, 230V, 240V, or enter a
custom voltage in the provided field.
•
For amperes per circuit, choose between 15 amps, 20 amps,
or enter a custom amp value.
•
Select between single-phase (1-phase) or three-phase (3
phase) power configurations.
•
Input the watts per cabinet to include power consumption as
part of the screen’s properties—this value is also saved in the preset
configuration.
•Input the watts per cabinet to include power consumption as
part of the screen’s properties—this value is also saved in the preset
configuration.
•
•
•Choose between two layout strategies:
Maximize Power Use: Optimizes power distribution efficiency.
Organized Layout: Aligns power to begin from one end of the
screen, ideal for Soca, C-form, or similar fanout systems.
Reset Tools Layout (Windows Menu)
We’ve added a Reset Tools Layout option under the Windows menu in
response to user feedback about missing tool palettes. This issue was
caused by a corrupted local configuration file. We’ve also updated the file
handling to reduce the chances of future corruption.
Clone: -When you duplicate (or Clone) a layer, it no longer goes at 0,0 offset;
rather, it sits at the same location as the layer that was cloned.
Port Names: -You can edit the Names of all Data Ports as well as Power Ports by
clicking on them once to select the name to edit and a second click (not a
double click) to start edit mode. You can change the name and must
press Enter to exit the edit mode.
All bug fixes from the previous version have been addressed,
along with the new additions, until any new issues are
discovered

🎉 New Release: Pixel Perfect Pro – The Ultimate LED Screen Design Software

Are you planning LED screens for music festivals, concerts, tours, corporate events, or film shoots — and struggling with pixel mapping, wiring diagrams, or power calculations?

Look no further.

Pixel Perfect Pro is the all-in-one LED software trusted by content creators, AV professionals, and production designers worldwide. Whether you’re building a stunning screen design for a high-profile show or mapping out LED layouts for a complex studio shoot, Pixel Perfect Pro delivers pixel-level precision, flexibility, and performance.

From creating accurate pixel maps, data paths, and power diagrams to exporting visuals for media servers and processors, Pixel Perfect Pro simplifies the entire content creation workflow for LED screens.

🔍 Why Pixel Perfect Pro?

This isn’t just a drawing tool — it’s your complete companion for LED screen production for any event:

• ✅ Music Festivals

• ✅ Concerts & World Tours

• ✅ Corporate Events

• ✅ Film Shoots & Studios

• ✅ Content Creation for LED Screens

🔧Key Features for LED Screen Professionals

• 🎯 Pixel-Level Screen Design

• Create LED screen layouts with pixel-by-pixel precision.

• 🔌 Data Path Mapping with Auto Port Calculation

• Draw 100% accurate data flows with automated port limits for seamless processor setup.

• ⚡ Power Path Planning

• Map power lines based on cabinet wattage, voltage, and amperage used in your region.

• 📊 Power Consumption Calculator

• Calculate power usage for each screen and total consumption per raster.

• ⚖️ Cabinet Weight & Screen Size Estimator

• Instantly view total screen weight, and diagonal measurement in standard or metric mesurements.

• 🧩 Custom Raster Tools

• Customize panel colors, numbers, raster sizes, and add your personal or company logo to all drawings.

• 🧱 Blank Panel & Cable Routing Tools

• Remove panels and automatically reroute data and power cables around blank areas.

• 🔄 Layer Rotation

• Rotate screen layers to design artistic or angled screens for creative stages.

• 🎨 Advanced Color Picker

• Select precise colors using RGB, HSV, or HEX codes — perfect for matching visual content.

• 🧰 Enhanced Power Tools

• New palette combines power diagrams and power calculations for both single-phase and 3-phase systems.

• 📤 Flexible Export Options

• Export to PNG for media servers, PSD for Adobe Photoshop, XML for Resolume Arena or save editable RDL project files.

• 📺 Live Output to LED Processors

• Send your pixel-perfect design directly to the video processor for real-time, screen-accurate display.

• 🔧 Built-in LED Screen Presets

• Includes preset configurations for various LED cabinets and customize your screens used by your company.

Pixel Perfect Pro V 2.5.2.x
