Description:
Intuitive structural analysis and design software for everyday engineering projects.


Model

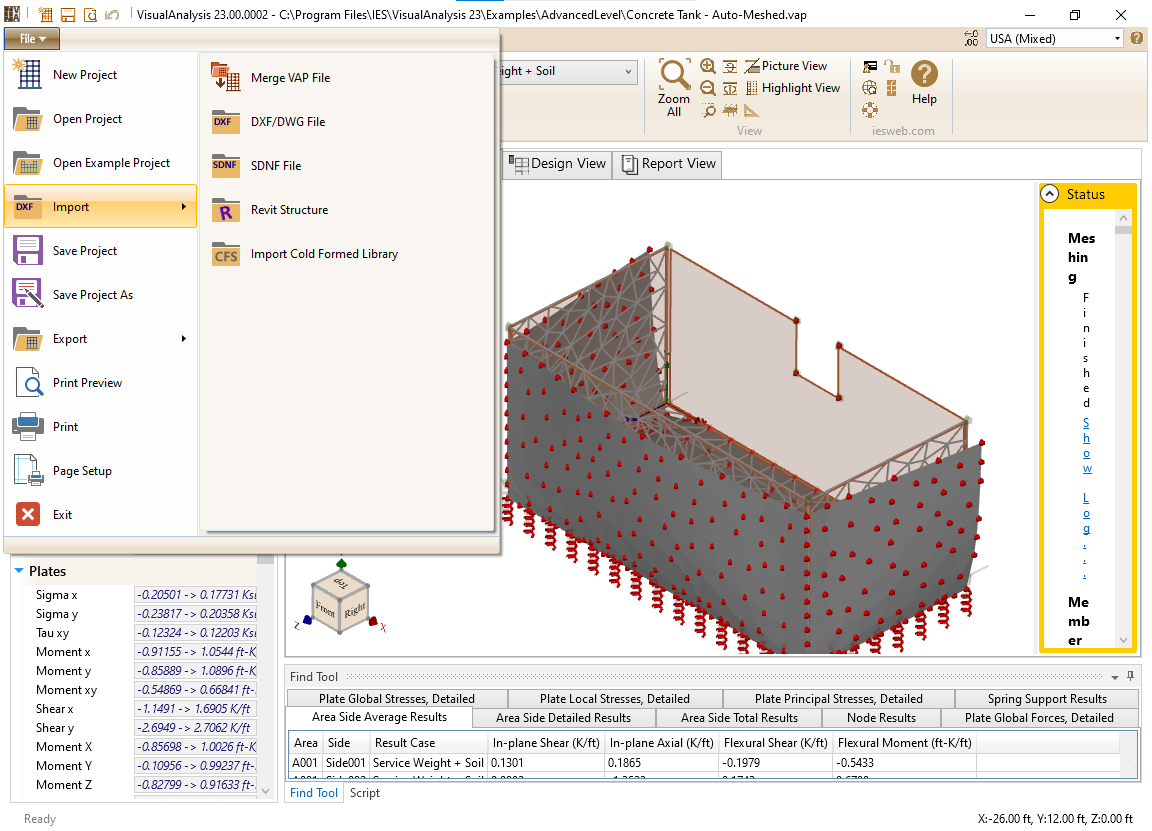

Create frame, truss or FEA models of just about any structure. Sketch, generate, import CAD, or BIM (Revit).
- 2D or 3D visual modeling
- Members and plate elements
- Fixed or elastic supports
- Custom shapes & materials
- Automatic plate meshing


Load
Easily apply loads. Distribute area loads to members. Gravity and lateral loading in the same project.
- Nodal, member or plate loads
- Automated code combinations
- Custom load combinations
- ASCE 7 wind loads
- Dynamic loading


Analyze
Fast static, P-delta, AISC Direct, dynamic, and nonlinear. Proven and validated results.
- Sparse formulation
- Multiple-threaded engine
- One-way element iterations
- Forces, displacements, reactions
- Clear graphical display


Design
Check steel, concrete, wood, cold-formed and aluminum per relevant material specifications.
- Optimize/search members
- You control process
- Your bracing and details
- Intermediate values reported
- Clear pass/fail unity checks


Report
Flexible and professional output with filters, sorting, and a page-preview viewer.
- Customize content and order
- Copy graphics into reports
- Save reports in your project file
- Make templates for future use
- Print or export


Succeed
We keep VisualAnalysis lean so you learn it quickly and get your projects out the door.
- Standard UI (like MS Office)
- Tooltips & error checking
- Online user’s guide, search & indexed
- 40+ short training videos
- Free, efficient email support


VisualAnalysis Levels
Buy only the capabilities you want. Easily upgrade later if your needs change. Current prices and licensing options are available in the order form. The free trial is the advanced level.
Simple Analysis | |
---|---|
![]() $ |
3D static and dynamic FEA for civil, mechanical, aerospace or any other structural analysis. Optional support of building code load combinations. |
2D Design | |
---|---|
![]() |
Basic static analysis and design of beams, columns, plane frames and trusses. With steel and wood specification checks. Watch The 2D Video |
Full Design | |
---|---|
![]() |
3D models of complete buildings, tanks, towers, etc. Static and dynamic response analysis. Design checks for steel, wood, concrete, cold-formed steel, and aluminum. |
Advanced | |
---|---|
![]() |
Complete analysis and design features including automatic plate meshing, command window, nonlinear elements, and dynamic time history analysis. |
